Filet de sécurité EN-1263-1 type U

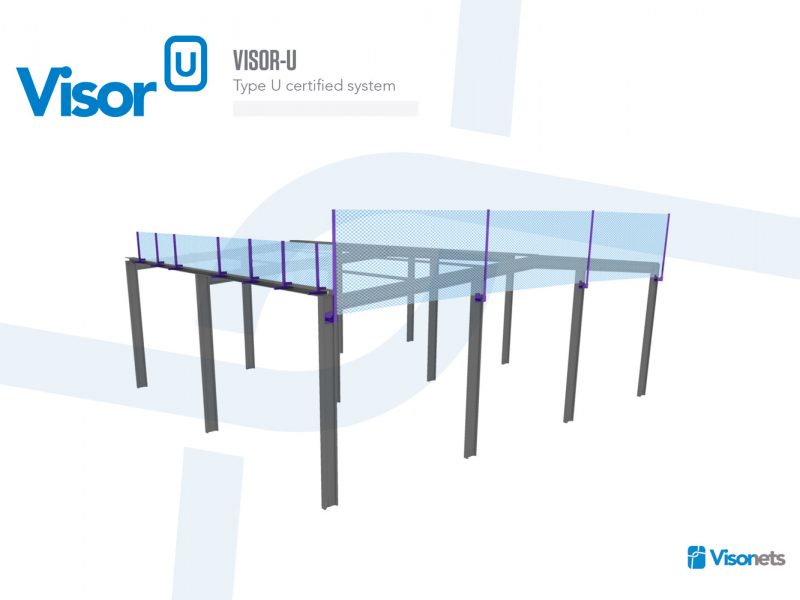

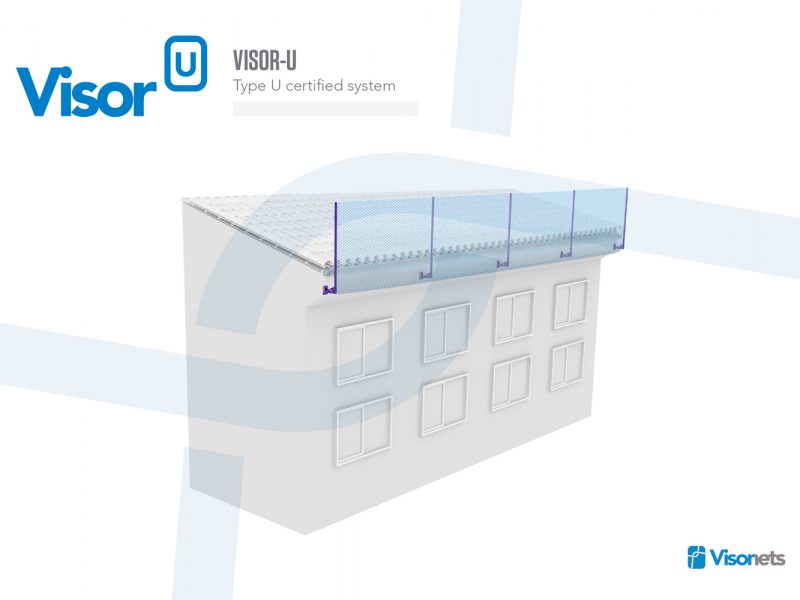

Système basé sur un filet de sécurité attaché au cadre de support pour une utilisation verticale.
Caractéristique
VISOR NETS conçoit et produit divers systèmes de protection collective avec des filets certifiés EN-1263.1 pour différentes applications dont celles conçues pour l’industrie photovoltaïque et la protection des ponts et viaducs.
Components
Filet de sécurité EN-1263.1 UA2Q100 ou UB1Q60, en nylon / polyamide ou polypropylène haute ténacité.
Cadres de support. VISOR FALL ARREST NETS conçoit des supports pour installer des filets de sécurité de type U sur de nombreuses surfaces.

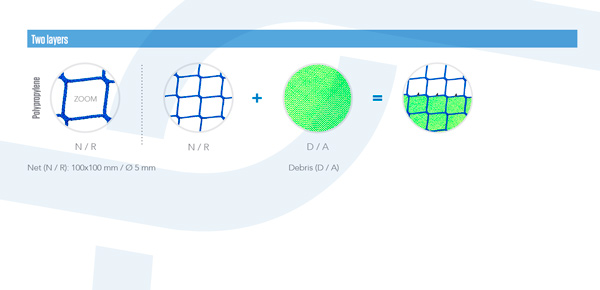

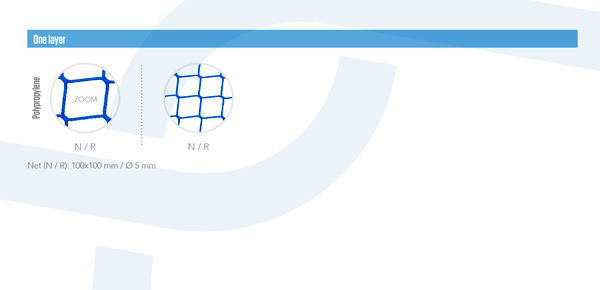

Finitions du filet
Fiche technique
Knotless Safety Net UA2Q100 PP
Raw material mesh | 100% high-tenacity polypropylene |
---|---|
Type of net | Knotless |
Energy of the net | A2 |
Configuration of the mesh | Square “Q” |
Size of the mesh | 100 mm |
Diameter of the mesh rope | 5 mm |
Minimum breaking force of the mesh rope | 2,2 kN |
Breaking energy of the net | 4,91 kJ |
Raw material border rope | 100% polysteel |
Breaking strength border rope | 20 kN (rope type P according to EN-1263.1:2014) |
Diameter of the border rope | 6 mm |
Net dimensions | Appear on the label of the net |
Manufacturing date of the net | Appears on the label of the net |
UV treatment | Yes (300 klY) |
Colour | Green / Blue / Red / Yellow |
Weight | 210 gr/m2 |
Knotted Safety Net UA2Q100 PP
Raw material mesh | 100% high-tenacity polyamide |
---|---|
Type of net | Knotted |
Energy of the net | A2 |
Configuration of the mesh | Square “Q” |
Size of the mesh | 100 mm |
Diameter of the mesh rope | 4.5 mm |
Minimum breaking force of the mesh rope | 2,2 kN |
Breaking energy of the net | 4,70 kJ |
Raw material border rope | 100% polysteel |
Breaking strength border rope | 7.5 kN (rope type O according to EN-1263.1:2014) |
Diameter of the border rope | 6 mm |
Net dimensions | Appear on the label of the net |
Manufacturing date of the net | Appears on the label of the net |
UV treatment | Yes (300 klY) |
Colour | White / Black |
Weight | 210 gr/m2 |
Coupling Rope 7.5kN
Raw material | 100% high-tenacity polypropylene |
---|---|
Breaking strengh | 7.5 kN (braided rope type O without loops / bights) |
Diameter | 6 mm |
Coil / bobbin length | 100 m |
UV treatment | Yes (300 klY) |
Colour | White |
Weight | 11.60 gr/ml |
Downloads
Contenu exclusif:
DOSSIER for U Type System Safety Nets
INSTALLATION GUIDE for U Type System Safety Nets
FICHE TECHNIQUE CORDE D'UNION 7,5 kN
