Filet de sécurité Type T – VISOR T-EVO FAN

  • Visor T-EVO Safety net CATCH FAN System – Simple anchor in upper and lower slabs
  • Visor T-EVO Safety net CATCH FAN System – Double anchor in upper slab
  • Catch fan fall arrest net type T-EVO FAN

Filet de sécurité EN-1263-1 type T-EVO FAN

VISOR NETS a conçu et produit ce système antichute pour personnes et objets consistant en un filet de sécurité fixé sur des supports pour une utilisation horizontale, appelé <<Visor T-EVO FAN>>.

Caractéristiques

Grace aux efforts de l’équipe de conception de Visor Fall Arrest Nets, nous sommes ravis de vous présenter le nouveau VisorT Evo System en tant qu’elément de protection collective conçu pour minimiser la chute des opérateurs à un niveau différent en vertical.

Lors du développement de ce système, à part tous les aspects techniques requis par la norme actuelle EN 1263.1:2014, l’équipe technique de Visornets a également pris en compte les aspects ergonomiques réduisant au maximun le poids du système par rapport au précédent combinant des profilés en acier et en aluminium structurel. En conséquence, nous obtenoms un système de fabrication 100% espagnol, polyvalent et facile à installer et à manipuler qui vos fournira une solution simple et efficace.

Le produit Visor-T Evo Fan est un système de protection collective qui comprend:

» Éléments textiles (filet de sécurité)
» Metallic structures (steel and aluminium tubes)

Ce système contient tous les accessoires nécessaires à l’installation.

Le système VisorT Evo no se limite pas aux éléments d’ancrage que nous vous proposons initialment. Au contraire, notre service technique, conscient des particularités des projets constructifs, est en mesure de développer d’autres ancrages pour différents types de travaux.

Système d'ancrage VISOR T-EVO FAN

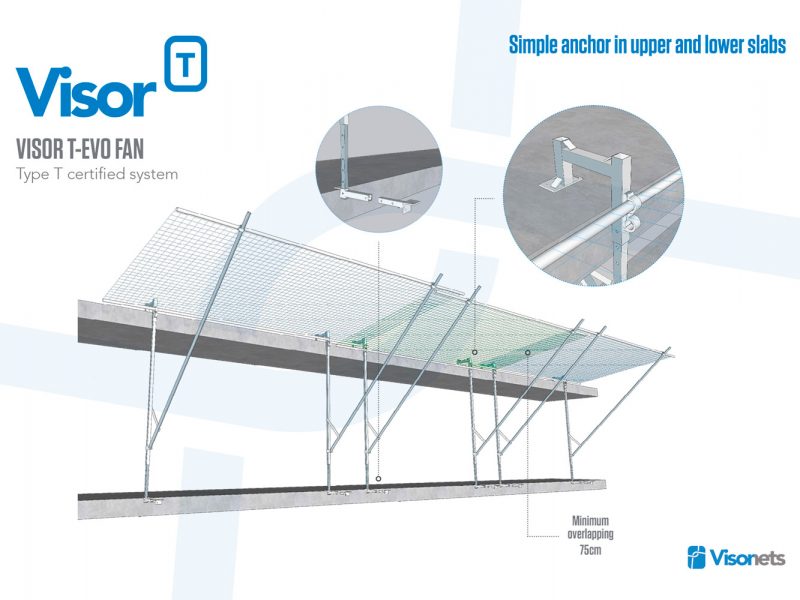

Ancrage simple dans les dalles supérieures et inférieures

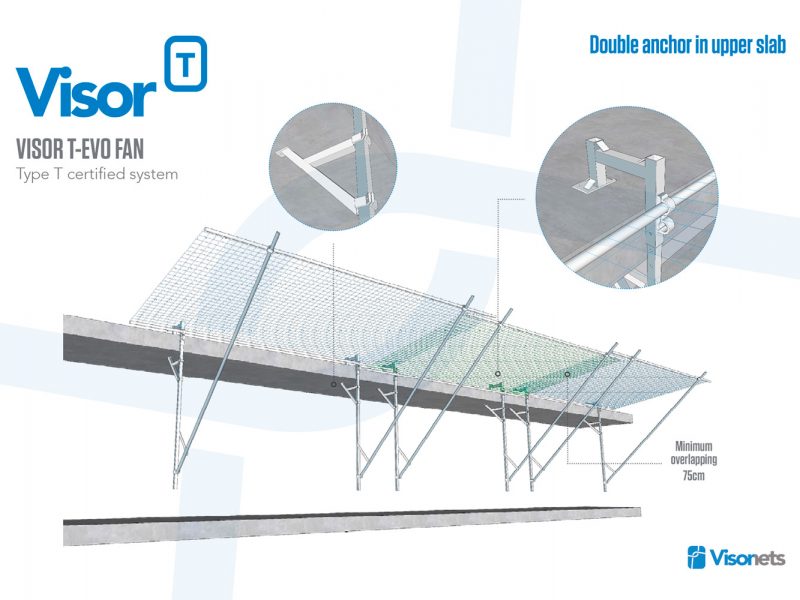

Double ancrage dans la dalle supérieure

Finitions du filet

Knotless Polypropylene

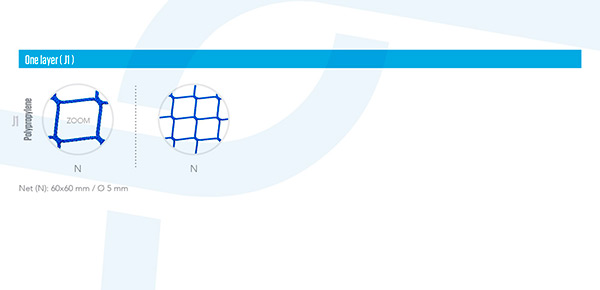

Une couche – Polypropylène sans noeuds

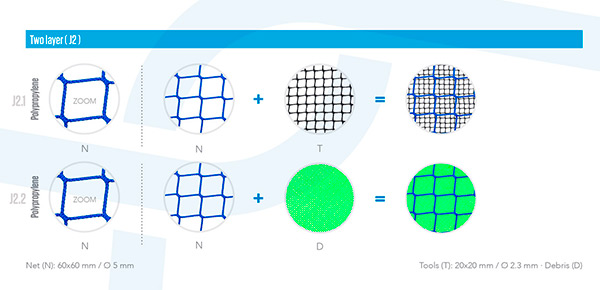

Deux couches – Polypropylène sans noeuds

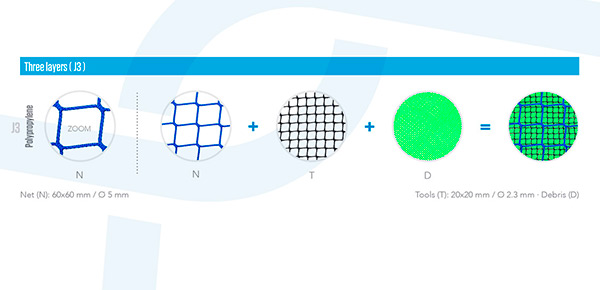

Trois couches – Polypropylène sans noeuds

Fiche technique

Knotless Safety Net TA2Q100 PP

Raw material mesh 100% high-tenacity polypropylene
Type of net Knotless
Energy of the net A2
Configuration of the mesh Square “Q”
Size of the mesh 100 mm
Diameter of the mesh rope 5 mm
Minimum breaking force of the mesh rope 2.2 kN
Breaking energy of the net 4.91 kJ
Raw material border rope 100% polysteel
Breaking strength border rope 20 kN (rope type W according to EN-1263.1:2014)
Diameter of the border rope 10 mm
Net dimensions Appear on the label of the net
Manufacturing date of the net Appears on the label of the net
UV treatment Yes (300 klY)
Colour Green / Blue / Red / Yellow
Weight 210 gr/m2

Knotless Safety Net TB1Q60 PP

Raw material mesh 100% high-tenacity polypropylene
Type of net Knotless
Energy of the net A2
Configuration of the mesh Square “Q”
Size of the mesh 60 mm
Diameter of the mesh rope 5 mm
Minimum breaking force of the mesh rope 2.2 kN
Breaking energy of the net 4.4 kJ
Raw material border rope 100% polysteel
Breaking strength border rope 20 kN (rope type W according to EN-1263.1:2014)
Diameter of the border rope 10 mm
Net dimensions Appear on the label of the net
Manufacturing date of the net Appears on the label of the net
UV treatment Yes (300 klY)
Colour Blue
Weight 345 gr/m2

Knotted Safety Net TB1Q60 PP + tools net 20 mm mesh

Raw material Safety net: 100 % high-tenacity polyprolylene
Tools net: 100 % high-tenacity polyprolylene
Type of net Type of net Safety net: Knotless / Tools net: Knotless
Energy of the net B1
Configuration of the mesh Square “Q”
Size of the mesh Safety net: 60 mm / Tools net: 20 mm
Diameter of the mesh rope Safety net: 5 mm / Tools net: 2 mm
Minimum breaking force of the mesh rope 2.2 kN
Breaking energy of the net 4.8 kJ
Raw material border rope Safety net: 100% polysteel
Breaking strength border rope Safety net: 20 kN (rope type W according to EN-1263.1:2014)
Diameter of the border rope Safety net: 10 mm
UV treatment Yes (300 klY)
Colour Safety net: Blue / Tools net: Black
Weight 560 gr/m2

Tie rope 20 kN

Raw material 100% high-tenacity polypropylene
Breaking strengh 20 kN (braided rope type G without loops / bights)
Diameter 12 mm
Coil / bobbin length 100 m
UV treatment Yes (300 klY)
Colour White
Weight 48.11 gr/m

Vidéo

Le système est conçu pour qu’en cas d’impact d’une personne, il n’y ait jamais de collision avec les éléments métalliques qui les composent.

VISOR NETS offre à ses clients une disposition des systèmes de filet de type T.
