Filet de sécurité Type S – VISOR-S

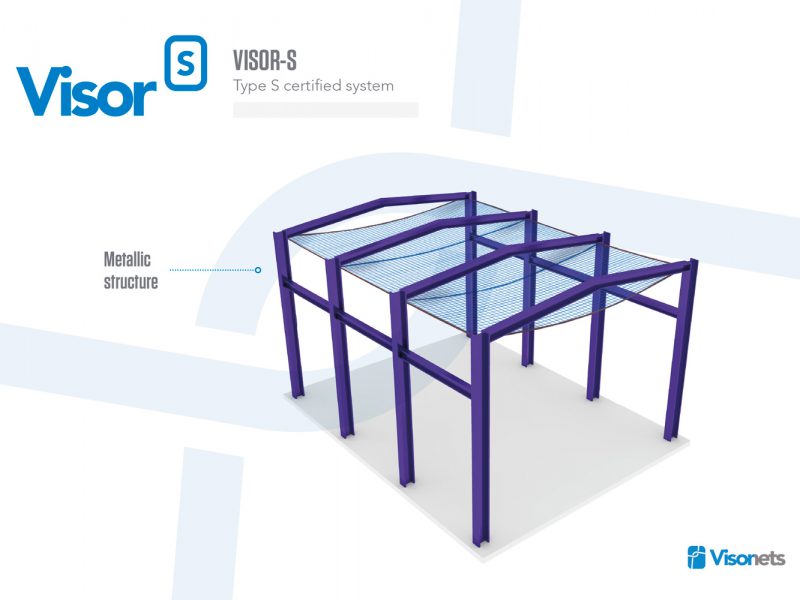

  • Safety Net Type S – Metallic Structure – VISOR-S

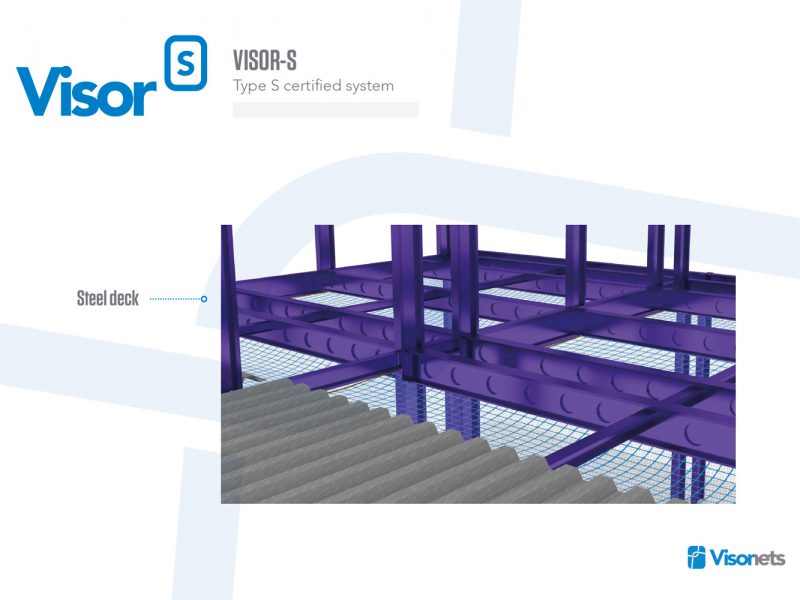

  • Safety Net Type S – Steel Decking – VISOR-S

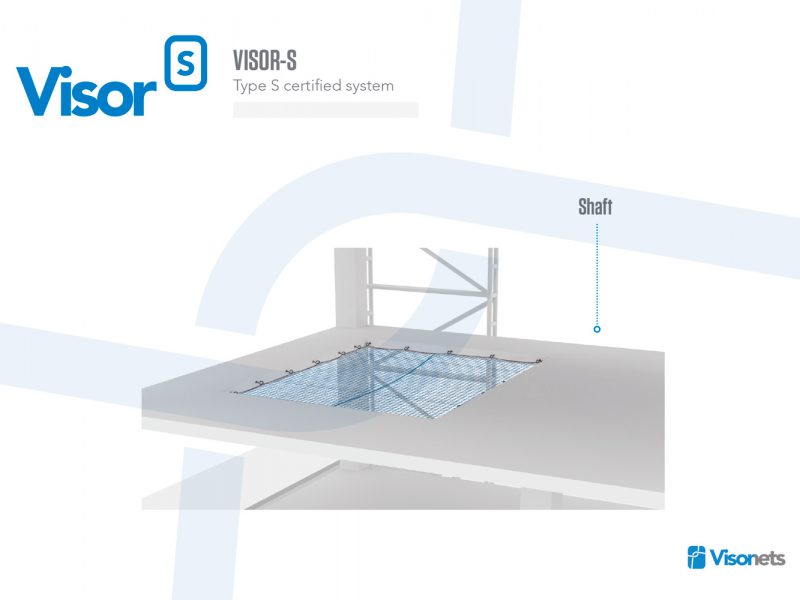

  • Safety Net Type S – Shaft – VISOR-S

EN 1263.1 Filet de sécurité type S

Filet de sécurité anti-chute homme avec corde périphérique pour une utilisation horizontale, en nylon/polyamide ou polypropylène haute ténacité et avec traitement anti UV.

Ce type de filet est généralement placé sur des sites tels que des bâtiments industriels, des ponts, des viaducs, des survols de travaux de génie civil, etc. La chose habituelle est d’utiliser des filets sur mesure, pour mieux répondre aux besoins du chantier.

Caractéristiques

Système antichute utile pour l’installation de estructures métalliques dans des bâtiments industriels, des puits de lumière, des cours intérieures ou interstices.

Components

Safety net EN-1263.1 SA2Q*

Mesh Sizes:

  • 100 mm
  • 80 mm
  • 60 mm

*La norme de sécurité EN-1263.1 définit la taille minimale du filet dont le côté le plus court doit dépasser 5 mètres et sa surface plus 35 m2.

Corde d’attache certifié EN 1263.1. Corde pour fixer la corde de bordure du filet à un support approprié de la structure (fermes ou arcades).

  • Type M. (résistance minimale à la traction > 30 kN)
Corde d'attache type m visornets 1



  • Type Z. (résistance minimale à la traction > 15 kN) (utilisé avec une branche à double charge)
Corde d'attache type z visornets
Corde d'attache type z visornets 1

Corde d’attelage. Certifié EN 1263-1 type O (résistance minimale à la traction 7.5 kN). Il rejoint deux ou plusieurs filets de sécurité.

Corde d'attelage visornets
Corde d'attelage visornets 1

Finitions du filet

Polypropylène sans nœuds

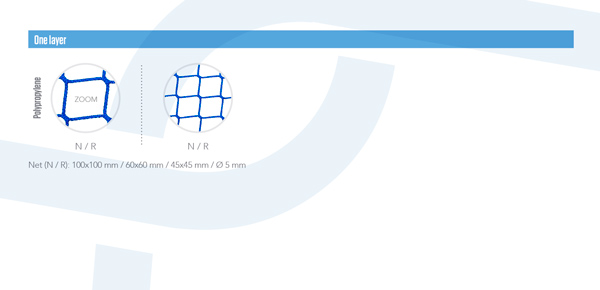

Une couche – Polypropylene sans nœuds

une couche - polypropylène sans nœuds visor s visornets

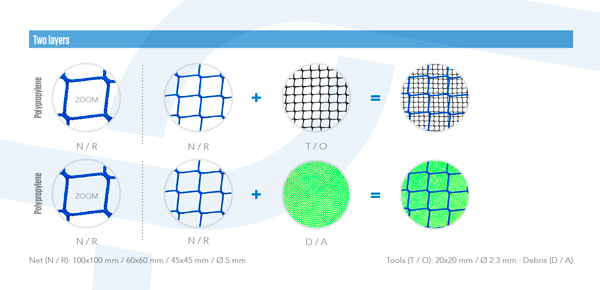

Deux couches – Polypropylène sans nœuds

deux couche popypropylène sans nœuds visor s visornets

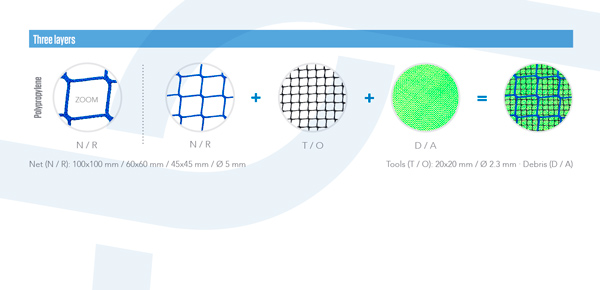

Trois couches – Polypropylène sans nœuds

trois couches Polypropylene sans nœuds visor s visornets

Polyamide noué

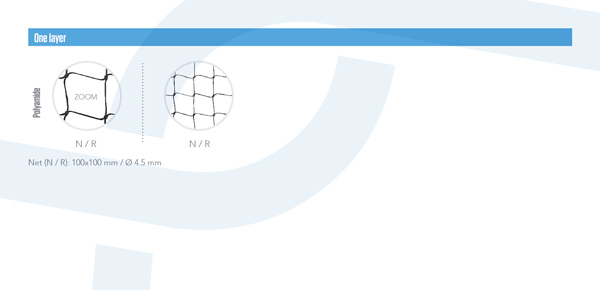

Une couche – Polyamide noué

une couche polyamide noué visor s visornets

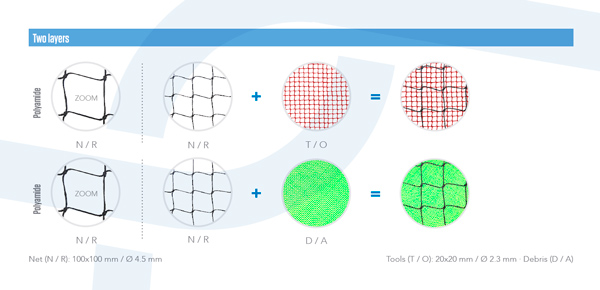

Deux couches – Polyamide noué

deux couches polyamide noué visor s visornets

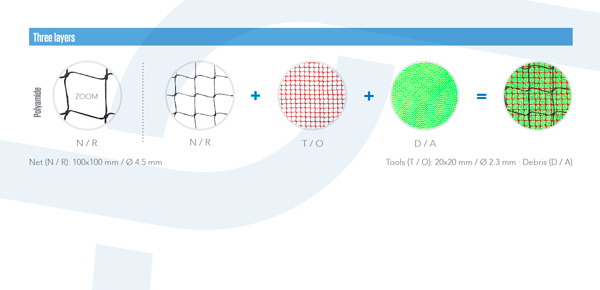

Trois couches – Polyamide noué

trois couches polyamide noué visor s visornets

Fiche technique

Knotted Safety net SA2Q100 PA

Raw material mesh 100 % high-tenacity polyamide
Type of net Knotted
Energy of the net A2
Configuration of the mesh Square “Q”
Size of the mesh 100 mm
Diameter of the mesh rope 4.5 mm
Minimum breaking force of the mesh rope 2.2 kN
Breaking energy of the net 4.70 kJ
Raw material border rope 100% polysteel
Breaking strength border rope 30 kN (rope type K according to EN-1263.1:2014)
Diameter of the border rope 13 mm
Net dimensions Appear on the label of the net
Manufacturing date of the net Appears on the label of the net
UV treatment Yes (300 klY)
Colour White / Black
Weight 210 gr/m2

Knotted Safety net Type S Q100 PA

Raw material mesh 100 % high-tenacity polyamide
Type of net Knotted
Configuration of the mesh Square “Q”
Size of the mesh 100 mm from knot to knot, thermofixed at 160º C
Diameter of the mesh rope 6 mm
Breaking force of the mesh rope 4.54 kN
Impact energy absorption 23,70 kJ
Raw material border rope 100% polysteel
Breaking strength border rope 30 kN
Diameter of the border rope 12 mm
Net dimensions Appear on the label of the net
Manufacturing date of the net Appears on the label of the net
UV treatment Yes (300 klY)
Colour White / Black
Weight 370 gr/m2

Knotless Safety Net VA2Q100 PP

Raw material mesh 100% high-tenacity polypropylene
Type of net Knotless
Energy of the net B1
Configuration of the mesh Square “Q”
Size of the mesh 60 mm
Diameter of the mesh rope 5 mm
Minimum breaking force of the mesh rope 2.2 kN
Energy characteristic value 4.4 kJ
Raw material border rope 100% polysteel
Breaking strength border rope 30 kN (rope type K according to EN-1263.1:2014)
Diameter of the border rope 13 mm
Net dimensions Appear on the label of the net
Manufacturing date of the net Appears on the label of the net
UV treatment Yes (300 klY)
Colour Blue
Weight 345 gr/m2

Knotless Safety Net SB1Q60 PP + tools net 20 mm mesh

Raw material Safety net: 100 % high-tenacity polyprolylene
Tools net: 100 % high-tenacity polyprolylene
Type of net Safety net: Knotless / Tools net: Knotless
Energy of the net B1
Configuration of the mesh Square “Q”
Size of the mesh Safety net: 60 mm / Tools net: 20 mm
Diameter of the mesh rope Safety net: 5 mm / Tools net: 2 mm
Minimum breaking force of the mesh rope 2.2 kN
Energy absorption 4.8 kJ
Raw material border rope Safety net: 100% polysteel
Breaking strength border rope Safety net: 20 kN (rope type W according to EN-1263.1:2014)
Diameter of the border rope Safety net: 10 mm
UV treatment Yes (300 klY)
Colour Safety net: Blue / Tools net: Black
Weight 560 gr/m2

Knotless Safety Net SB1Q60 PP

Raw material mesh 100% high-tenacity polypropylene
Type of net Knotless
Energy of the net B1
Configuration of the mesh Square “Q”
Size of the mesh 60 mm
Diameter of the mesh rope 5 mm
Minimum breaking force of the mesh rope 2.2 kN
Energy characteristic value 4.4 kJ
Raw material border rope 100% polysteel
Breaking strength border rope 30 kN (rope type K according to EN-1263.1:2014)
Diameter of the border rope 13 mm
Net dimensions Appear on the label of the net
Manufacturing date of the net Appears on the label of the net
UV treatment Yes (300 klY)
Colour Blue
Weight 345 gr/m2

Knotless Safety Net SB1Q45 PP

Raw material mesh 100% high-tenacity polypropylene
Type of net Knotless
Energy of the net B1
Configuration of the mesh Square “Q”
Size of the mesh 45 mm
Diameter of the mesh rope 5 mm
Minimum breaking force of the mesh rope 2.2 kN
Energy characteristic value 4.4 kJ
Raw material border rope 100% polysteel
Breaking strength border rope 30 kN (rope type K according to EN-1263.1:2014)
Diameter of the border rope 13 mm
Net dimensions Appear on the label of the net
Manufacturing date of the net Appears on the label of the net
UV treatment Yes (300 klY)
Colour Green
Weight 395 gr/m2

Knotless Safety Net SA2Q100 PP

Raw material mesh 100% high-tenacity polypropylene
Type of net Knotless
Energy of the net A2
Configuration of the mesh Square “Q”
Size of the mesh 100 mm
Diameter of the mesh rope 5 mm
Minimum breaking force of the mesh rope 2.2 kN
Energy characteristic value 4.91 kJ
Raw material border rope 100% polysteel
Breaking strength border rope 30 kN (rope type K according to EN-1263.1:2014)
Diameter of the border rope 13 mm
Net dimensions Appear on the label of the net
Manufacturing date of the net Appears on the label of the net
UV treatment Yes (300 klY)
Colour Green / Blue / Red / Yellow
Weight 210 gr/m2

Tie rope 30 kN (braided PP rope)

Raw material 100% high-tenacity polypropylene
Breaking strengh 30 kN (braided rope type M without loops / bights)
Diameter 12 mm
Coil / bobbin length 100 m
UV treatment Yes (300 klY)
Colour White
Weight 79 gr/m

Tie rope 30 kN

Raw material 100 % high-tenacity polyamide
Breaking strengh 30 kN (wired rope type M without loops / bights)
Diameter 12 mm
Coil / bobbin length 100 m
UV treatment Yes (300 klY)
Colour White
Weight 65.72 gr/m

Coupling Rope 7.5kN

Raw material 100% high-tenacity polypropylene
Breaking strengh 7.5 kN (braided rope type O without loops / bights)
Diameter 6 mm
Coil / bobbin length 100 m
UV treatment Yes (300 klY)
Colour White
Weight 11.60 gr/ml

Pour plus d’informations sur ce système, contactez-nous via [email protected].
