Filet de sécurité EN-1263-1 type V

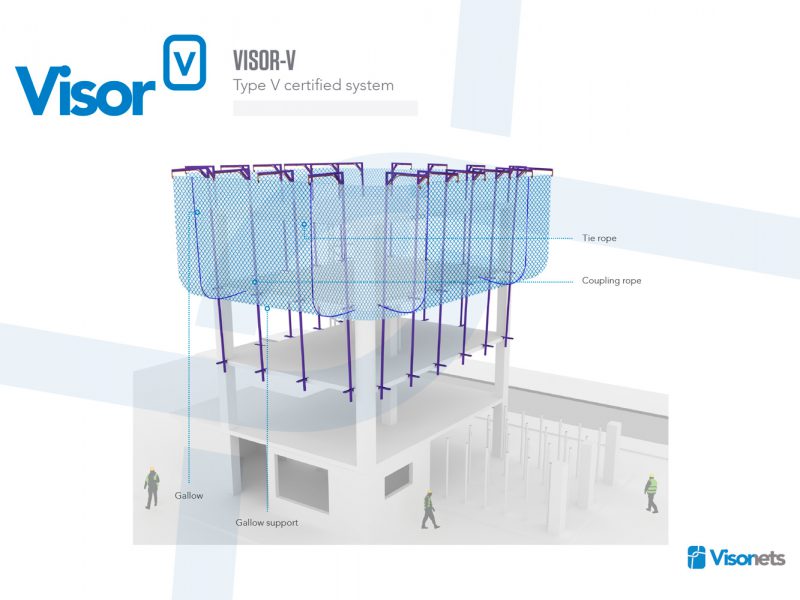

Filet de sécurité avec corde de bordure attachée à un support de type potence.
Caractéristiques
Le filet de securité type V est un système pour arrêter la chute de personnes et d'objets à une hauteur maximale autorisée de 6 mètres, recommandé à 3 mètres.
Components
Filet de sécurité EN-1263.1 VA2Q100, VA2Q80 ou VB1Q60: en nylon / polyamide ou polypropylène haute ténacité.
Support de type potence. Élément en acier de construction pour soutenir le filet de sécurité EN-1263.1.
Ancrage de type potence: Les supports de type potence sont ancrés au bord de la dalle de béton au moyen de barres d'acier ondulées appelées «omégas» de 12 mm de diamètre ou ½ pouce illustrées sur le site.
Ancrage du filet: Le filet de type V est ancré sur le côté de la dalle de béton par des structures en acier ondulé nommées «U», de 6 mm de diamètre ou 3/8 de pouce, également indiquées sur le site.
Attachez la corde: Certifié selon la norme EN-1263.1 type G (résistance minimale à la traction 20 kN) pour hisser le filet et l'ancrer au support de type potence.
Corde d'attelage: certifiée selon la norme EN-1263.1 type O (résistance minimale à la traction 7,5 kN) pour assembler les panneaux de filet.
Finitions du filet
Polypropylène sans nœud

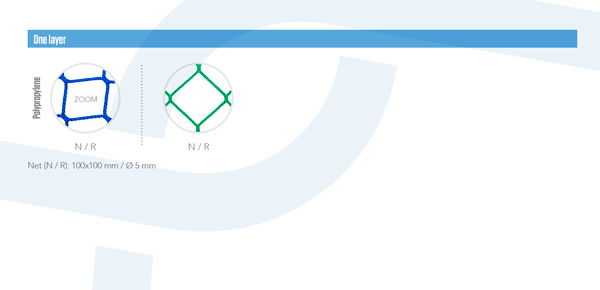

Une couche - Polypropylène sans nœud

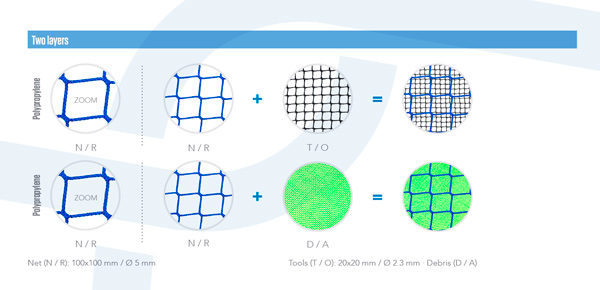

Deux couches - Polypropylène sans nœud

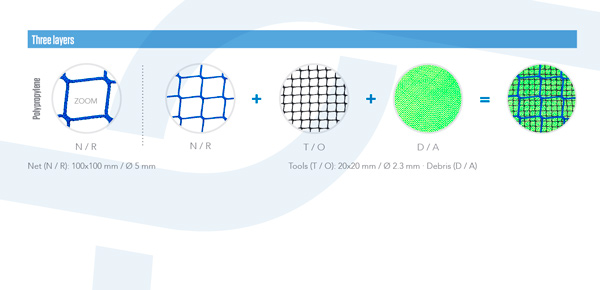

Trois couches - Polypropylène sans nœud
Fiche technique
Knotless Safety Net VA2D100 PP
| Raw material mesh |
100% high-tenacity polypropylene |
| Type of net |
Knotless |
| Energy of the net |
A2 |
| Configuration of the mesh |
Diamond “D” |
| Size of the mesh |
100 mm |
| Diameter of the mesh rope |
5 mm |
| Minimum breaking force of the mesh rope |
2.2 kN |
| Breaking energy of the net |
4.91 kJ |
| Raw material border rope |
100% polysteel |
| Breaking strength border rope |
20 kN (rope type P according to EN-1263.1:2014) |
| Diameter of the border rope |
10 mm |
| Net dimensions |
Appear on the label of the net |
| Manufacturing date of the net |
Appears on the label of the net |
| UV treatment |
Yes (300 klY) |
| Colour |
Green / Blue / Red / Yellow |
| Weight |
210 gr/m2 |
Knotless Safety Net VA2Q100 PP
| Raw material mesh |
100% high-tenacity polypropylene |
| Type of net |
Knotless |
| Energy of the net |
A2 |
| Configuration of the mesh |
Square “Q” |
| Size of the mesh |
100 mm |
| Diameter of the mesh rope |
5 mm |
| Minimum breaking force of the mesh rope |
2.2 kN |
| Breaking energy of the net |
4.91 kJ |
| Raw material border rope |
100% polysteel |
| Breaking strength border rope |
20 kN (rope type P according to EN-1263.1:2014) |
| Diameter of the border rope |
10 mm |
| Net dimensions |
Appear on the label of the net |
| Manufacturing date of the net |
Appears on the label of the net |
| UV treatment |
Yes (300 klY) |
| Colour |
Green / Blue / Red / Yellow |
| Weight |
210 gr/m2 |
Knotted Safety Net VA2D100 PP
| Raw material mesh |
100% high-tenacity polypropylene |
| Type of net |
Knotted |
| Energy of the net |
A2 |
| Configuration of the mesh |
Diamond “D” |
| Size of the mesh |
100 mm |
| Diameter of the mesh rope |
5 mm |
| Minimum breaking force of the mesh rope |
2.2 kN |
| Breaking energy of the net |
4.91 kJ |
| Raw material border rope |
100% polysteel |
| Breaking strength border rope |
20 kN (rope type P according to EN-1263.1:2014) |
| Diameter of the border rope |
10 mm |
| Net dimensions |
Appear on the label of the net |
| Manufacturing date of the net |
Appears on the label of the net |
| UV treatment |
Yes (300 klY) |
| Colour |
Green / Blue / Red / Yellow |
| Weight |
210 gr/m2 |
Gallow type support
| Section |
50x50 |
60x60 |
70x70 |
| Dimensions (edge) |
a = 50 mm |
a = 60 mm |
a = 70 mm |
| Wall thickness |
e = 3 mm |
e = 3 mm |
e = 3 mm |
| External radius |
r = 8 mm |
r = 8 mm |
r = 8 mm |
| Perimeter |
u = 187 mm |
u = 227 mm |
u = 277 mm |
| Cross-sectional area |
A = 5.33 cm2 |
A = 6.53 cm2 |
A = 7.73 cm2 |
| Static moment of half section, with regard to the X or Y axis |
S = 4.62 cm3 |
S = 6.89 cm3 |
S = 9.60 cm3 |
| Inertia moment of the section, with regard to the X or Y axis |
I = 19.00 cm4 |
I = 34.40 cm4 |
I = 56.60 cm4 |
| Resistant module of the section, with regard to the X or Y axis |
W = 7.59 cm4 |
W = 11.50 cm4 |
W = 16.20 cm4 |
| Turning radius of the section, with regard to the X or Y axis |
i = 1.89 cm |
i = 2.30 cm |
i = 2.71 cm |
| Module of torsion of the section |
It = 32.00 cm4 |
It = 57.10 cm4 |
It = 92.60 cm4 |
| Weight |
p = 4.18 kp/m |
p = 5.13 kp/m |
p = 6.07 kp/m |
Tie rope 20 kN
| Raw material |
100% high-tenacity polypropylene |
| Breaking strengh |
20 kN (braided rope type G without loops / bights) |
| Diameter |
12 mm |
| Coil / bobbin length |
100 m |
| UV treatment |
Yes (300 klY) |
| Colour |
White |
| Weight |
48.11 gr/m |
Coupling Rope 7.5kN
| Raw material |
100% high-tenacity polypropylene |
| Breaking strengh |
7.5 kN (braided rope type O without loops / bights) |
| Diameter |
6 mm |
| Coil / bobbin length |
100 m |
| UV treatment |
Yes (300 klY) |
| Colour |
White |
| Weight |
11.60 gr/ml |
